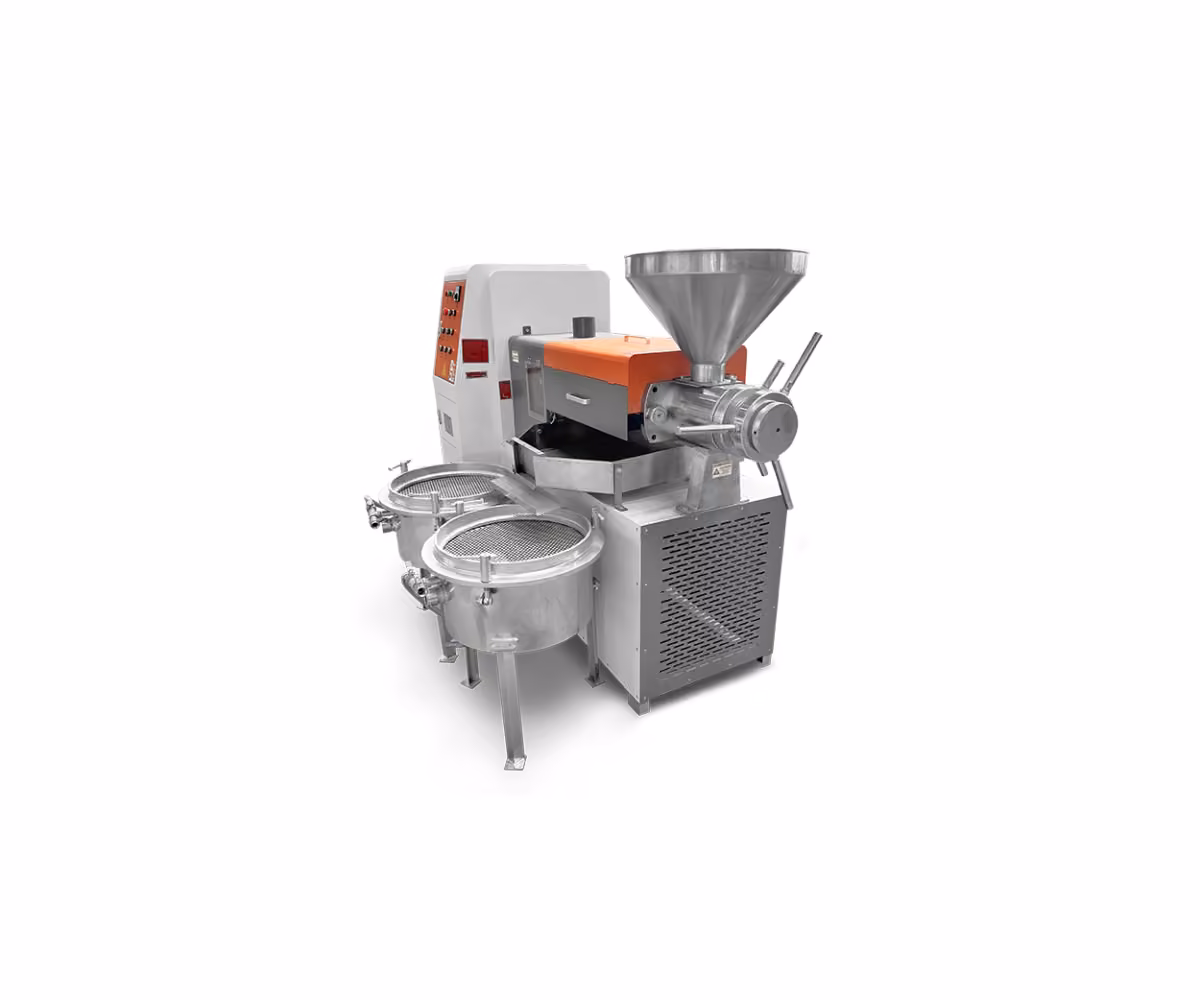

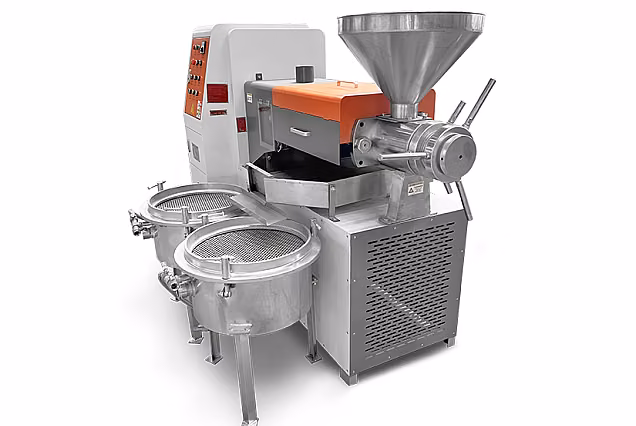

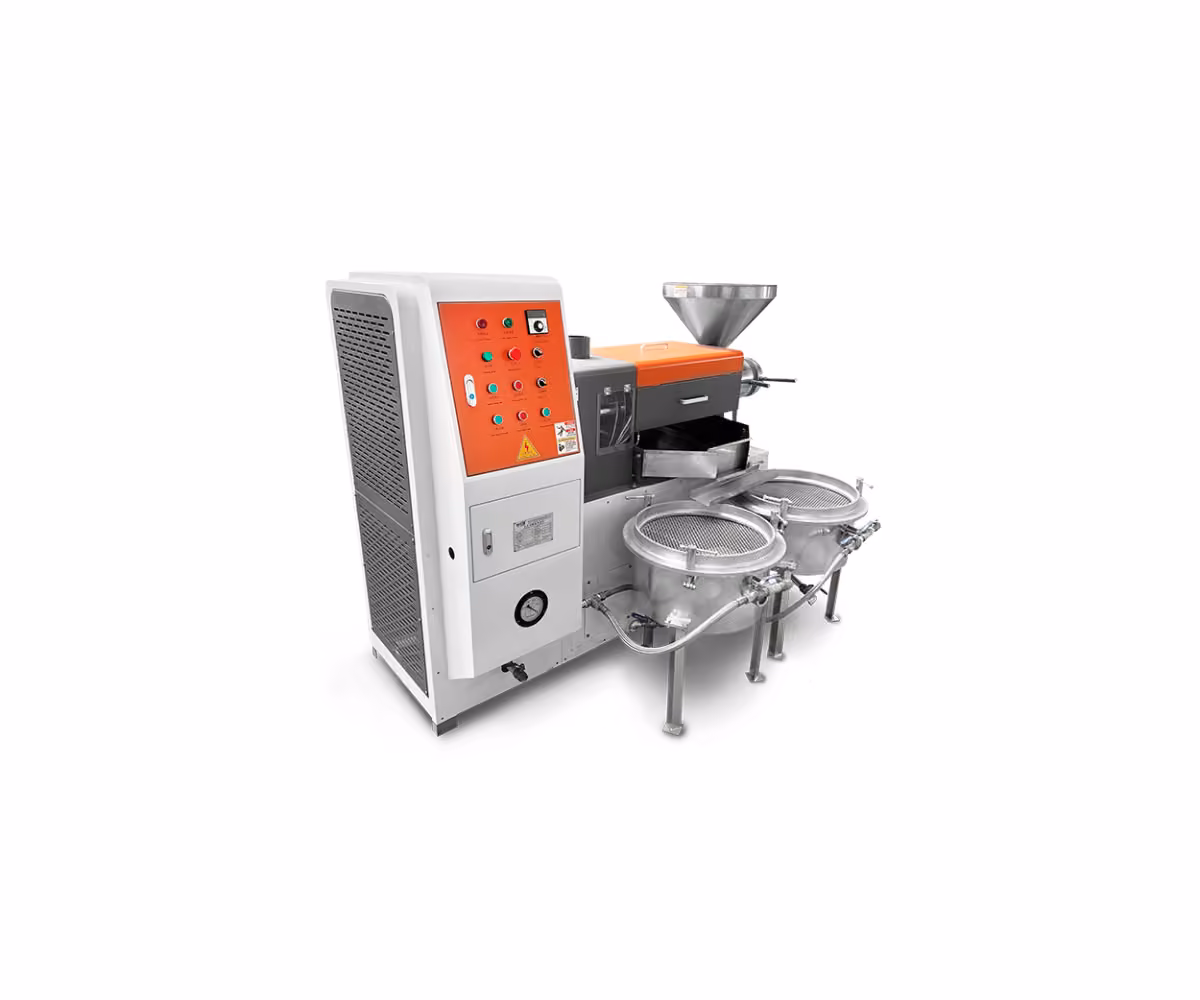

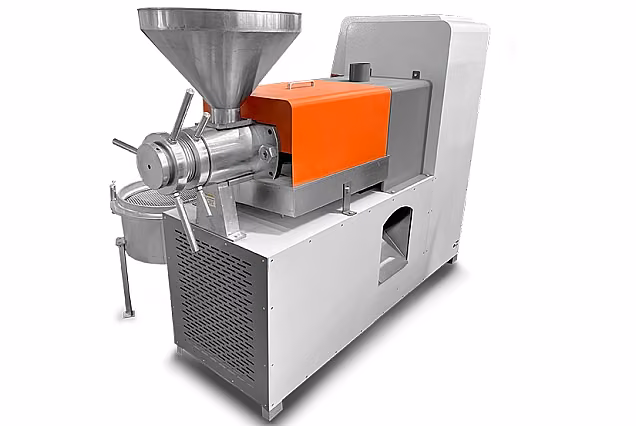

Screw Oil Press for Hot Extraction with Vacuum Filter Set
Hot Oil Pressing 🌡️

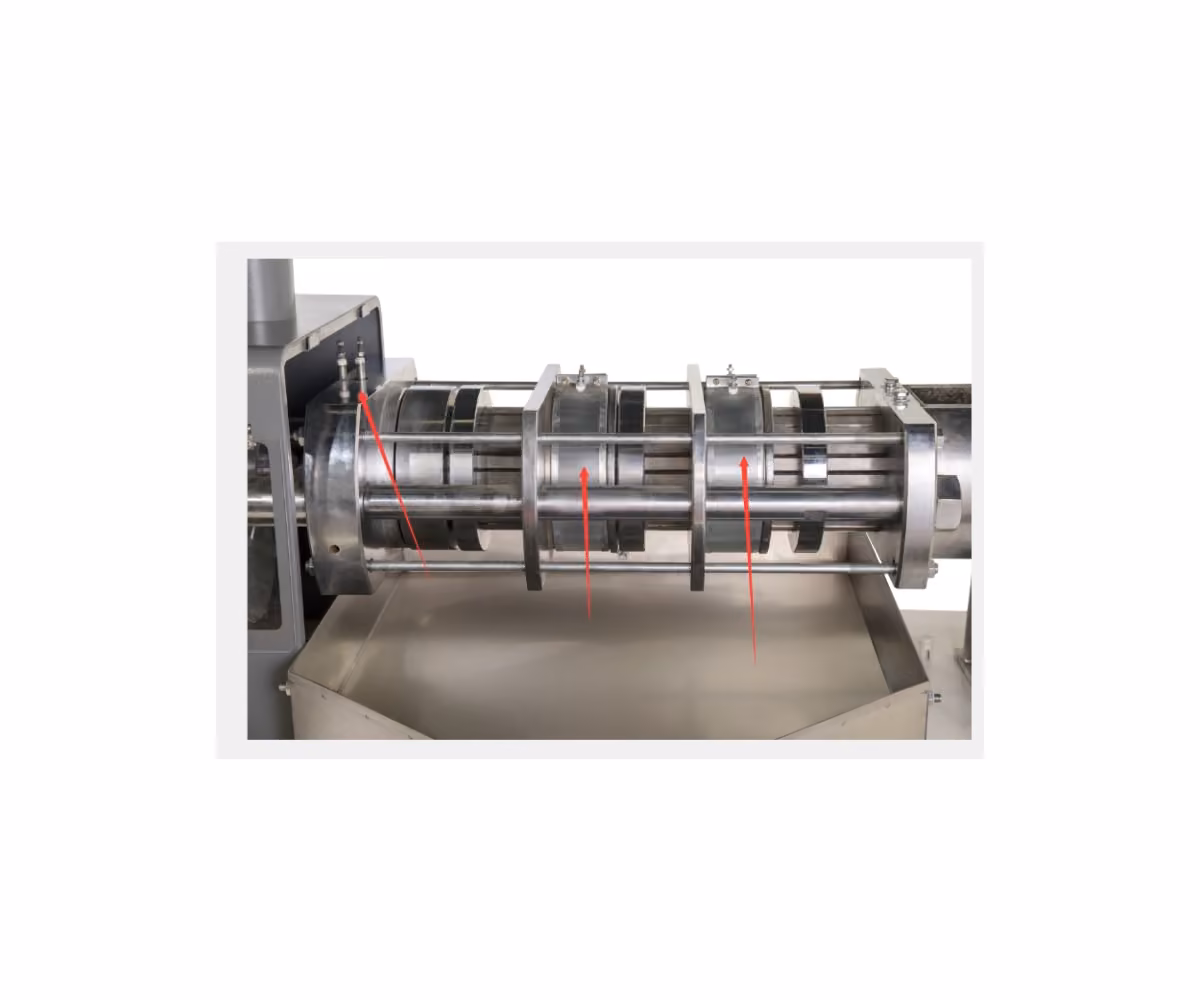

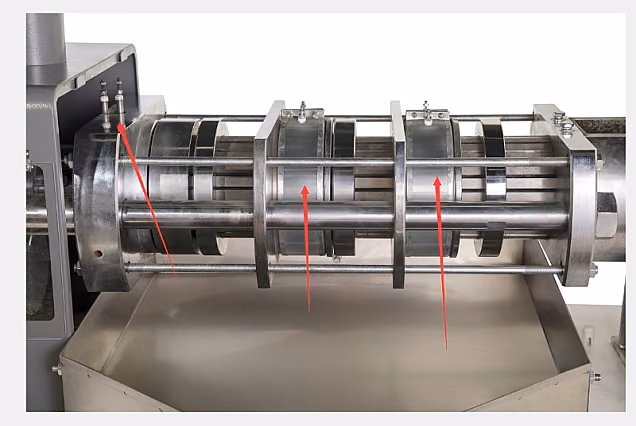

During hot pressing, seeds are processed at temperatures between 120–200°C. The main advantage of hot pressing is a higher oil yield. High temperatures allow pressing oil from seeds without a hard shell (e.g., hulled sunflower seeds), as well as from more demanding materials like coconut flakes, which cannot be pressed at low temperatures.
Applications
The LY120 oil press is designed for extracting oil from oilseeds with over 15% oil content and moisture below 10%. With pressing temperatures up to 200°C, the machine achieves efficient oil extraction. Warm oil is also easier to filter, improving clarity and shelf life.
Filtration 💧
Oil extracted by screw presses contains fine particles from the pressed seeds. Filtration improves clarity, prolongs shelf life, and facilitates storage. Thanks to the integrated vacuum filters, oil obtained from this press is suitable for direct bottling.
Filtration efficiency depends on oil type and temperature.
Oil temperature during filtration should be at least 60°C.

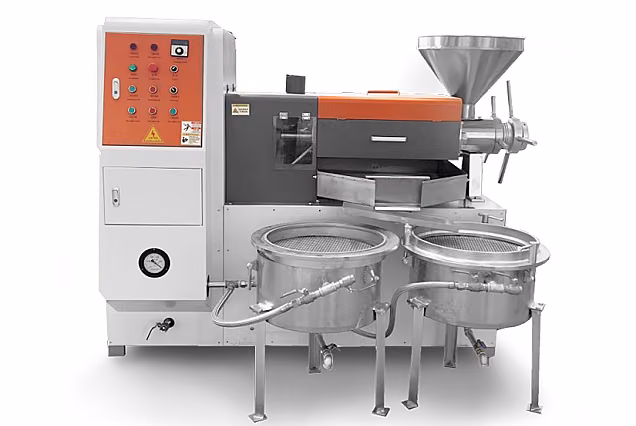

VACUUM FILTER : Uses a vacuum pump to create negative pressure in the filter tank. Particles settle on the filter medium, forming a “filter cake.” This mechanical process does not change the oil’s structure and uses no chemicals.
Built for Long and Heavy Duty Use ⚙️
The press features a durable and stable structure, designed for continuous operation. High-quality motors ensure reliable 24/7 performance. This press is suitable for professional oil mills as part of a production line, or as a standalone device for small, family-run oil production.
Equipment includes: Motor with rails, drive belt covers, simple control panel, drip tray and chamber cover made of stainless steel
Press Cake
The by-product, or press cake, is shaped like “chips.” A high-energy, nutrient-rich raw material suitable as animal feed or for pellet production. Can also be used for flour, baking ingredients, or salads.
Service, Support & Training 🛠️
We provide all clients with professional service and post-warranty support.
TRAINING IS INCLUDED with every machine purchase to ensure our clients master all skills related to production and machine operation.
The machine also comes with a CE certificate, compliant with European standards. ✅
| Capacity: | 180-260 kg/24h |
| Oil residue in a cake: | up to 6% |
| Pressing temperature: | adjustable |
| Screw diameter: | Ø 120 mm |
| Inner press chamber diameter: | Ø 122 mm |
| Screw rotations: | 36 r/min |
| Motor: | 11 kW |
| Heatera: | 4 kW |
| Maximum heating temperature: | 200°C |
| Pump motor: | 1,1 kW |
| Power supply: | 400V 50Hz |
| Press dimensions: | 205 x 140 x 180 cm (L x W x H.) |
| Press body weight: | 915 kg |
Manufacturer:
Prima-Tech S.C.
ul. Górna 2a
42-262 Kolonia Poczesna
Tel. +48 34 328 51 48
email: primatech@op.pl
Country of origin: China
