Semi-Automatic Double Head Filling Machine for Thick Substances with Water Jacket – Heated Dual Nozzle Viscous Product Filler
Precise Dosing of Thick Products Requiring Heating
The semi-automatic double head filling machine for thick substances with water jacket is an advanced dual nozzle heated viscous product filler designed for accurate portioning of high-viscosity materials such as pastes, mousses, creams, and other semi-liquid masses.
This solution is ideal for production plants, craft manufacturers, and any facility where stable product consistency and repeatable dosing accuracy are essential.
The machine enables fast, clean, and precise filling of bottles, cups, jars, and various containers, significantly improving the packaging and portioning process while increasing production efficiency.

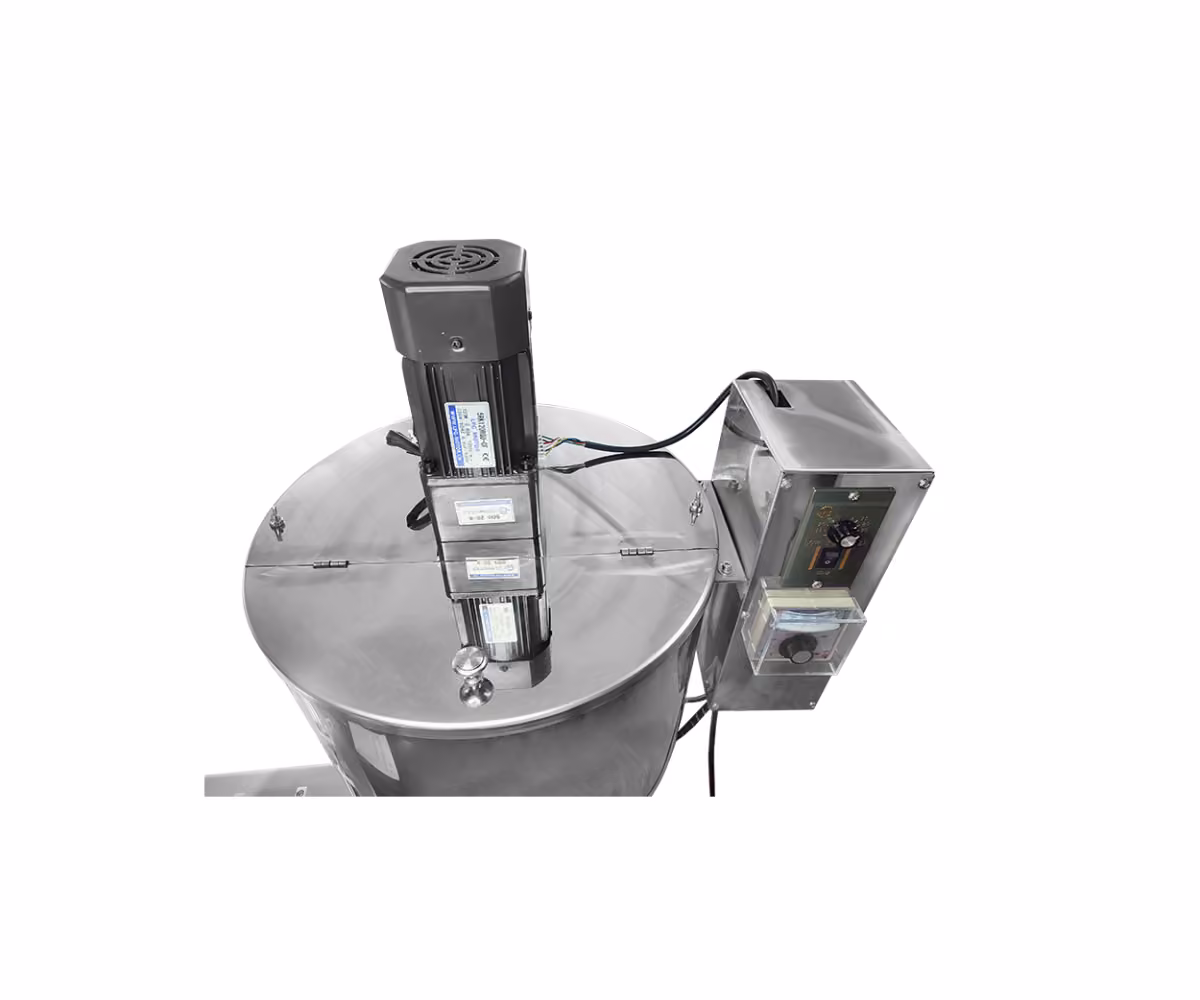

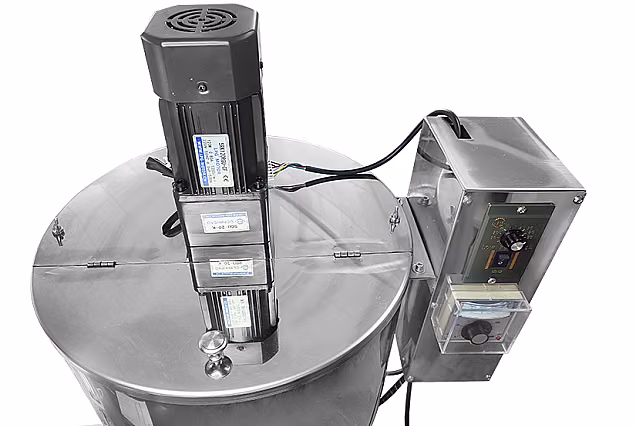

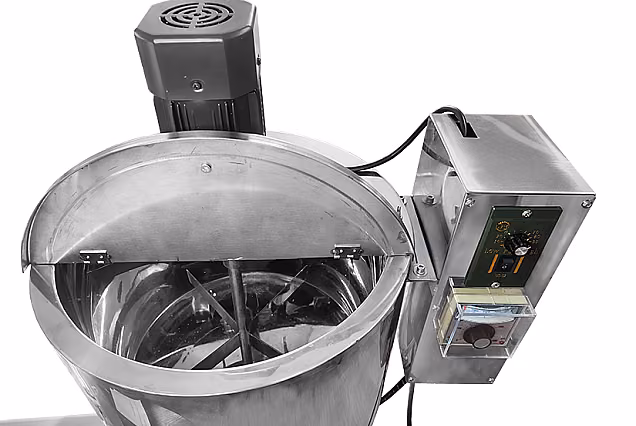

Hopper with Water Jacket and Agitator
Temperature Control and Product Homogeneity

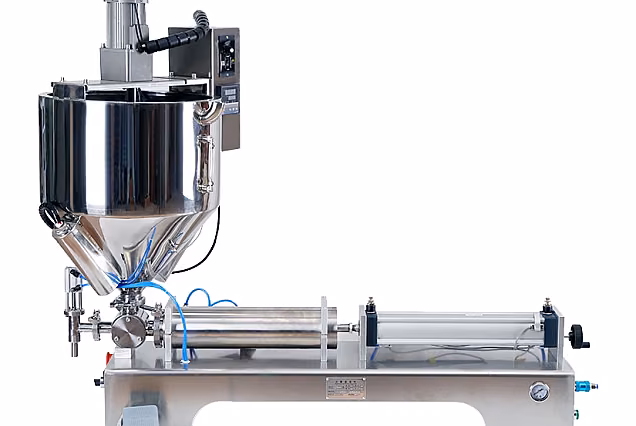

The filling machine is equipped with a water-jacketed hopper, allowing gentle and non-invasive heating of the dispensed product. The double-wall design filled with water ensures even heat distribution, minimizing the risk of overheating or burning the substance.

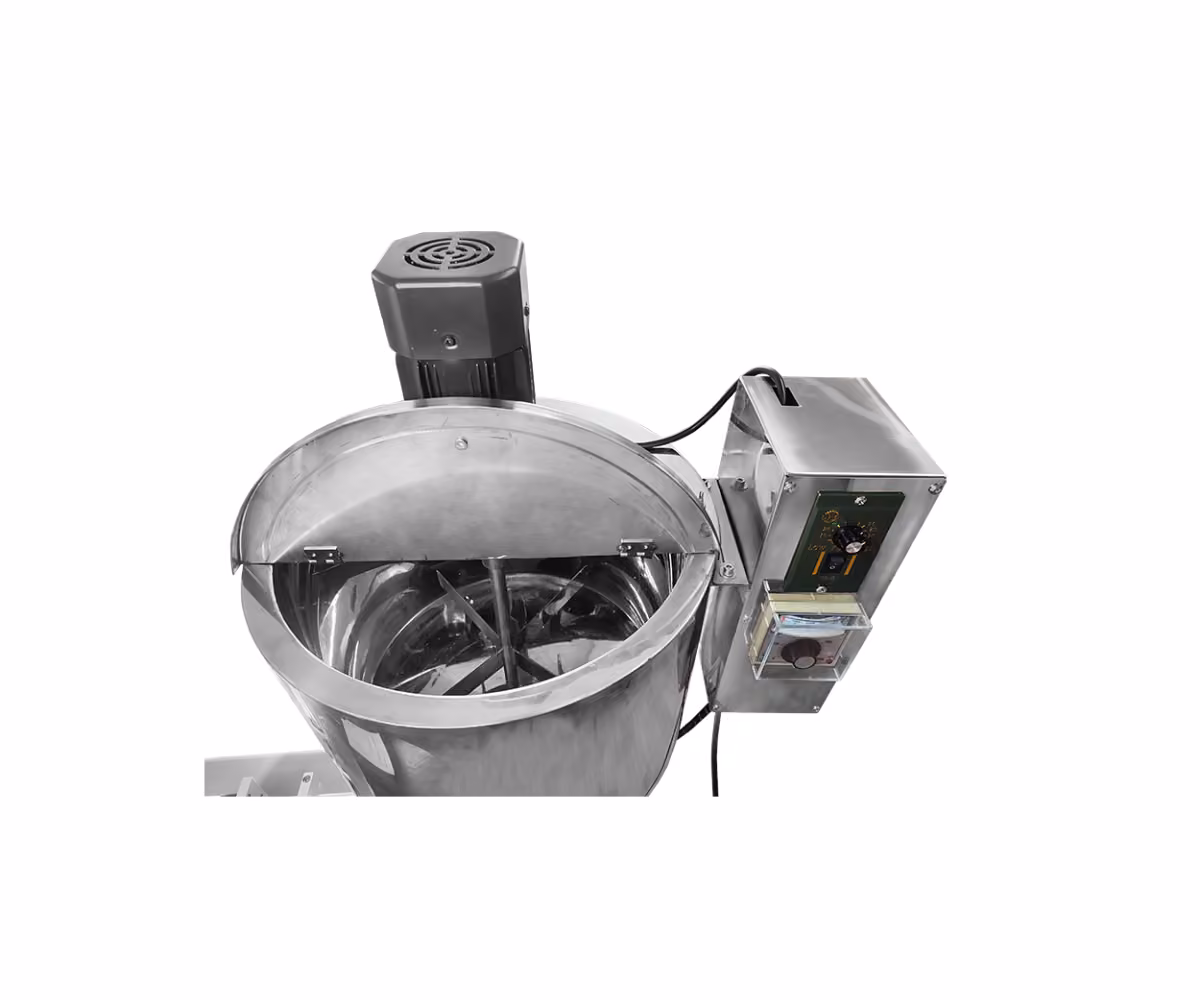

An integrated agitator (mixer) prevents product separation during operation, maintaining a uniform and consistent texture throughout the entire filling cycle.
Both the heating temperature and the agitator speed are smoothly adjustable and independently controlled, allowing precise customization of operating parameters according to specific product requirements.
Adjustable Filling Range
Accuracy for Small and Medium Portions
The filling machine offers smooth volume adjustment from 30 ml to 500 ml, making it an ideal solution for precise filling of small and medium-sized containers.

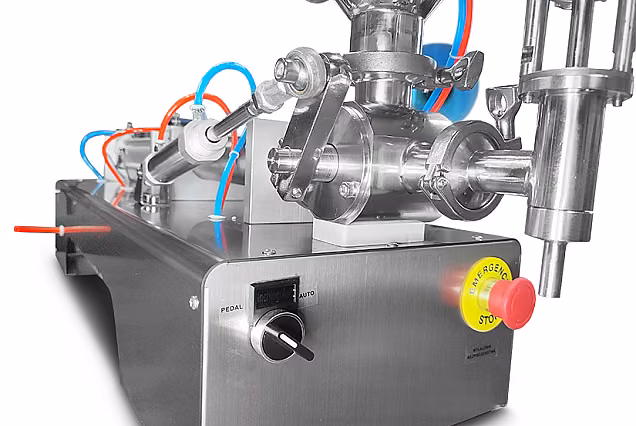

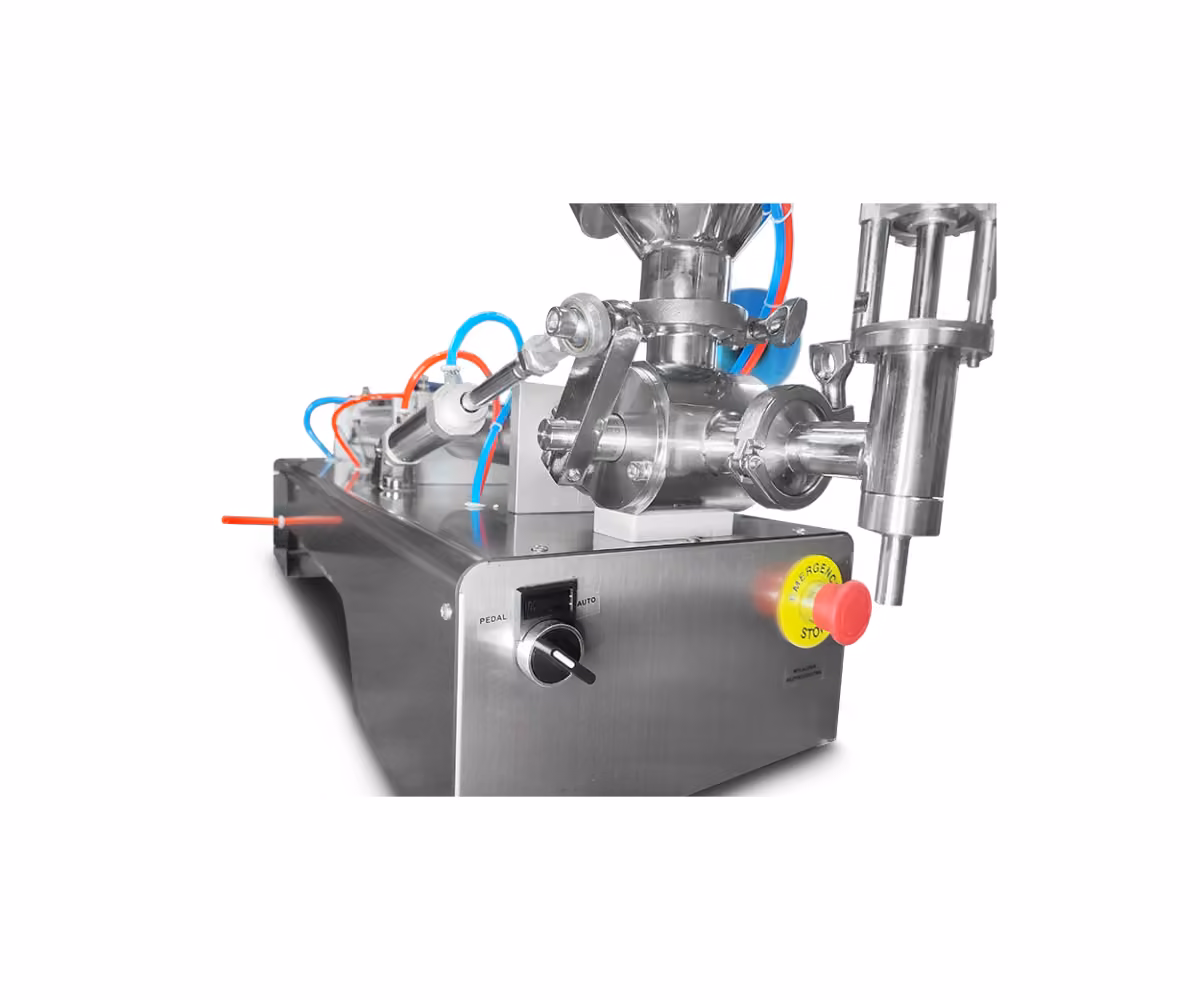

The machine can operate in:
- automatic mode,
- manual mode – activated via a convenient foot pedal.
This configuration provides full operator control over the dosing process while ensuring high working comfort.

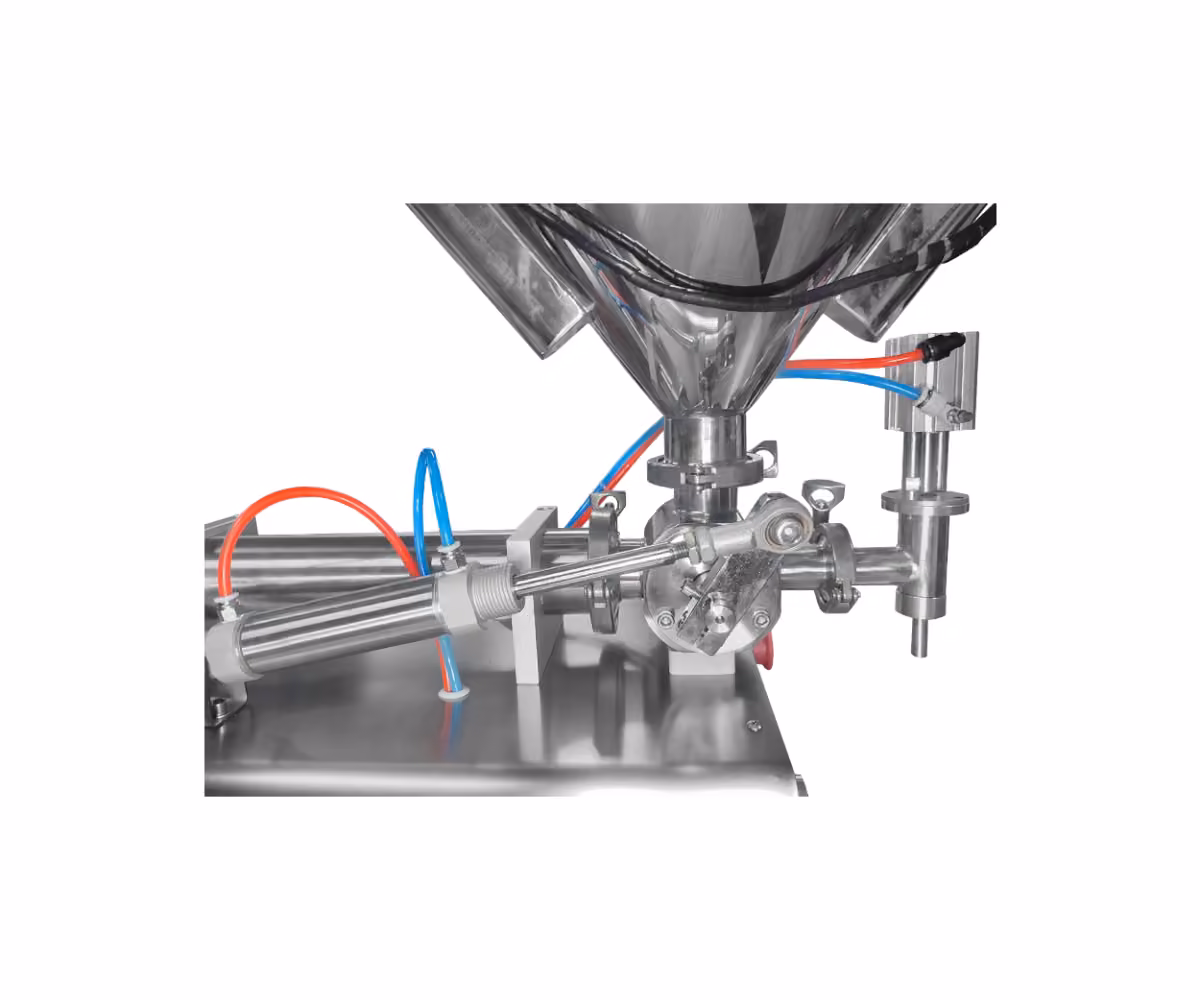

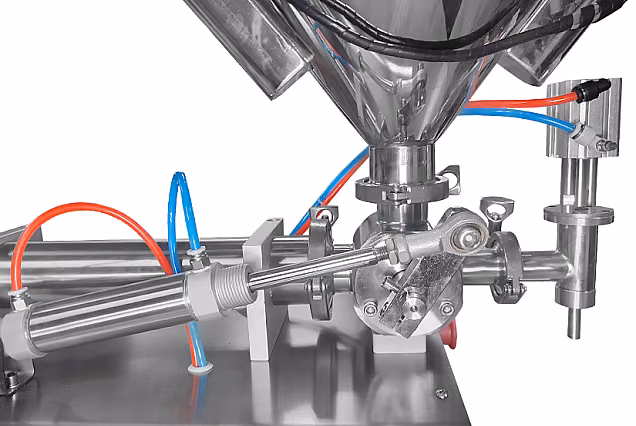

Interchangeable Filling Nozzles
Adapted to Various Packaging Types
The use of interchangeable filling nozzles allows operation with both very narrow and wide container necks. This enables flexible application depending on the type of product and packaging format.
As a result, the heated viscous filling machine can be easily adapted to different production needs without additional equipment.
Power Supply and Technical Requirements
Easy Integration into Existing Infrastructure
For proper operation, the machine must be connected to an air compressor with the following specifications:
- Tank capacity: minimum 60 liters
- Power: 1.3–1.5 kW
The compressor is not included, allowing you to use your existing technical infrastructure.
Stainless Steel Construction
Hygiene and Long-Term Durability
The dispenser is entirely made of stainless steel, ensuring:
- compliance with sanitary and hygiene standards,
- high corrosion resistance,
- fast and easy cleaning.
This construction makes the machine ideal for the food industry and any environment where cleanliness and product safety are critical.
Product Temperature
The recommended maximum product temperature is 70°C, enabling safe operation with substances that require heating to achieve proper consistency.
Why Choose This Semi-Automatic Double Head Heated Filling Machine?
Key Benefits
- precise dosing of high-viscosity substances,
- dual filling heads for increased productivity,
- integrated water jacket heating system,
- consistent product homogeneity thanks to the agitator,
- accurate adjustment for small and medium portions,
- versatile use for various packaging types,
- durable stainless steel construction.
The semi-automatic double head filling machine for thick substances with water jacket and agitator is a reliable and functional solution that enhances dosing precision and ensures a professional production standard.
| Parameter | Specification |
|---|---|
| Filling Head | 1 pcs |
| Filling Range | 30–500 ml |
| Output | 5–25 pcs/min |
| Filling Method | Piston |
| Filling Nozzle | Ø inner/outer 8/10 mm (optional: 3/4, 4/6, 8/10, 10/12, 12/14, 14/16 mm) |
| Hopper Capacity | 30 L |
| Air Pressure Required | 0.8 Mpa |
| Power Supply | 230 V |
| Total Power | 2140 W |
| Max Heating Temperature | 0–300°C |
| Dimensions (L×W×H) | 110 × 49 × 102 cm |
| Weight | 38kg |
Manufacturer:
Prima-Tech S.C.
ul. Górna 2a
42-262 Kolonia Poczesna
Tel. +48 34 328 51 48
email: primatech@op.pl
Country of origin: China
